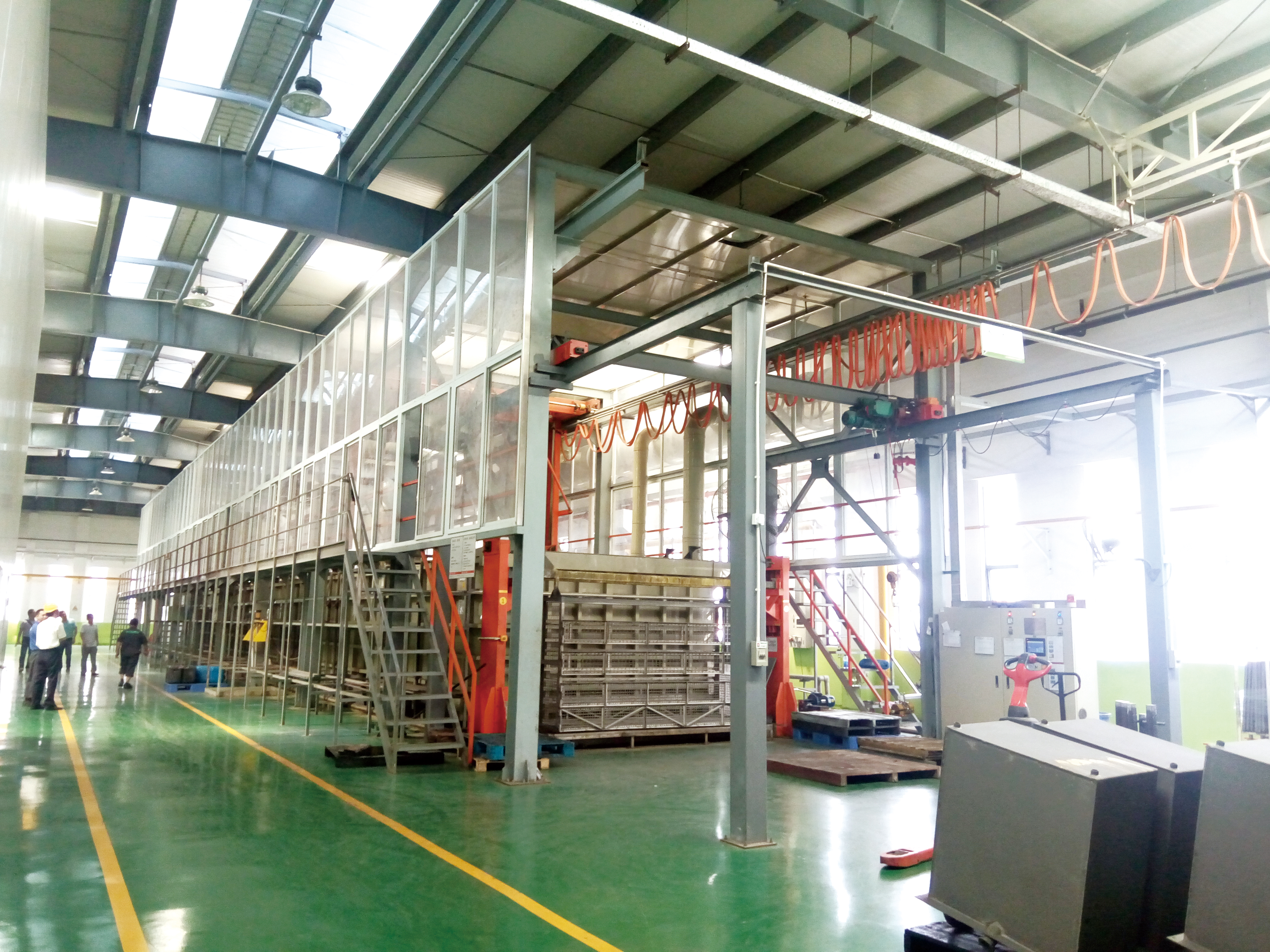

The seven major components of the powder spraying line equipment mainly include pre-treatment equipment, powder spraying system, spraying equipment, oven, heat source system, electric control system, suspension conveyor chain, etc.

噴粉線裝置噴出的殘留粉末落入噴粉室底部，噴粉室底部的粉末自動掃入捕粉箱。 粉體回收箱內的粉體通過粉體供給系統送入粉體篩分機，不浪費粉體，送入粉體滾筒回收。

The residual powder sprayed by the powder spraying line device falls into the bottom of the powder spraying room, and the powder at the bottom of the powder spraying room is automatically swept into the powder catching box. The powder in the powder recycling box is fed into the powder screening machine through the powder supply system, without wasting the powder, and is sent to the powder drum for recycling.

根據設計要求，噴粉線設備兩側配備4支自動噴粉槍。 機械手可以根據工件的復雜程度調整垂直速度和粉體輸出的大小，也可以根據工件的大小調整機械手的升降大小。 確保粉末涂裝的質量要求。

According to the design requirements, four automatic powder spraying guns are equipped on both sides of the powder spraying line equipment. The robotic arm can adjust the vertical speed and powder output size based on the complexity of the workpiece, and can also adjust the lifting size of the robotic arm according to the size of the workpiece. Ensure the quality requirements of powder coating.

噴粉線涉及噴粉線掛鉤連接裝置。 噴粉線用于靜電噴粉生產線連接、斷開的噴涂工件和鏈條吊架。 噴粉線裝置由帶密封腔的箱體和設置在箱體內的掛鉤機構組成，掛鉤機構下的箱體底面設有長孔。

The powder spraying line relates to a hook connecting device of the powder spraying line. The powder spraying line is used for connecting and disconnecting spraying workpieces and chain hangers in the electrostatic powder spraying production line. The powder spraying line device consists of a box with a sealing chamber and a hook mechanism arranged inside the box. The bottom surface of the box under the hook mechanism is equipped with long holes.

噴粉線的連接裝置和被表面處理鉤的環狀端部位于幾乎完全封閉的殼體內，因此噴粉線的懸掛部與被涂裝物的連接部被吹塑成形而影響導電性，無需對鉤進行頻繁的剝離處理，能夠大幅降低鉤剝離處理的成本此外，噴粉線裝置可以容易地實現兩個物體之間的隱形連接和斷開，噴粉線具有效率高的特點。

The connecting device of the powder spraying line and the circular end of the surface treatment hook are located in an almost completely enclosed shell, so the hanging part of the powder spraying line and the connecting part of the coated object are blown and formed, which affects conductivity. There is no need for frequent peeling treatment of the hook, which can greatly reduce the cost of hook peeling treatment. In addition, the powder spraying line device can easily achieve invisible connection and disconnection between two objects, and the powder spraying line has the characteristics of high efficiency.
